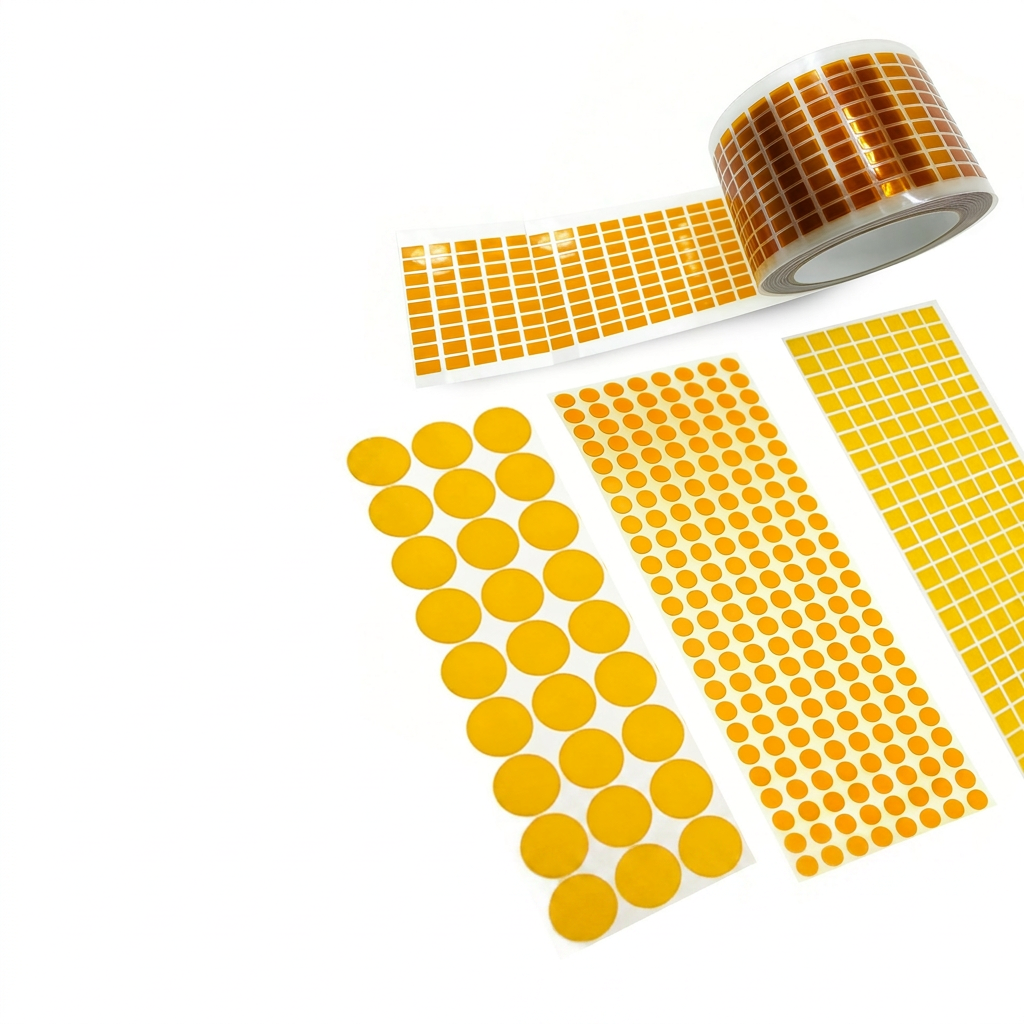

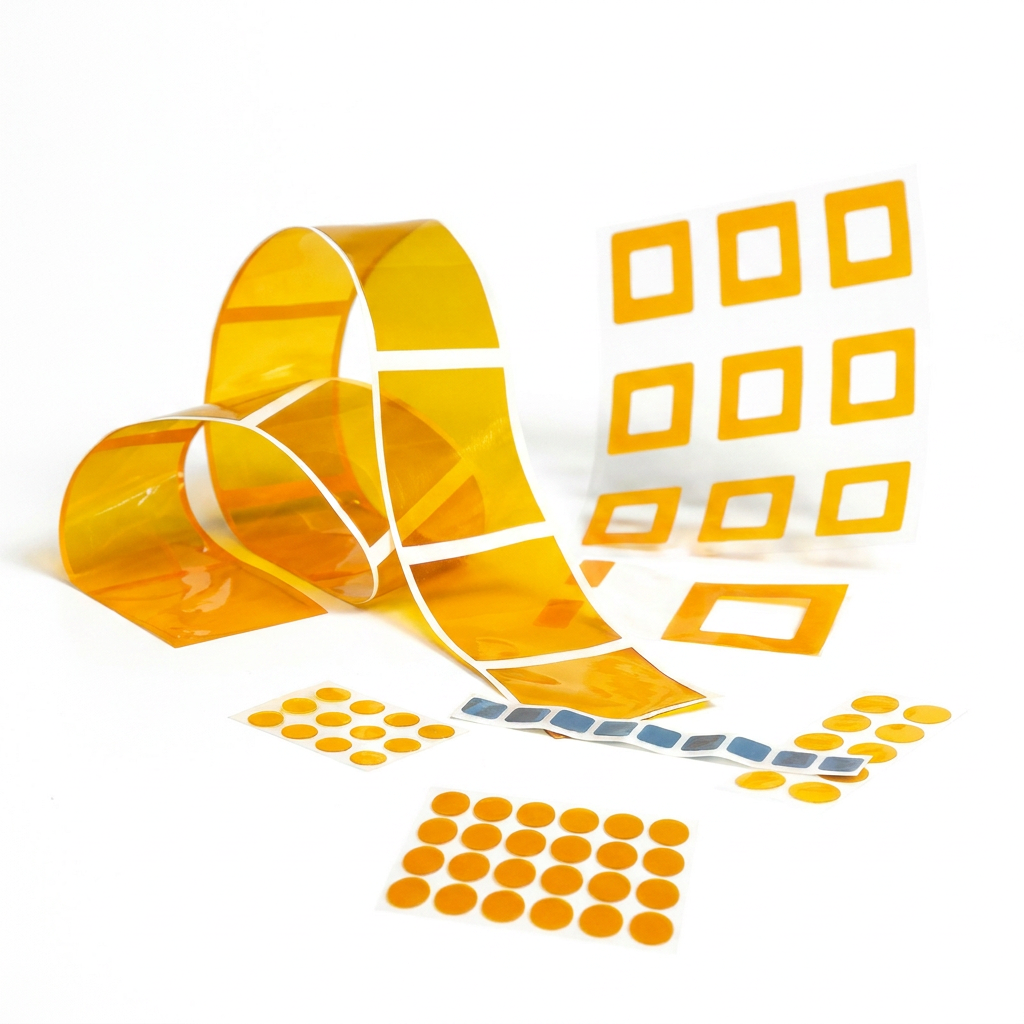

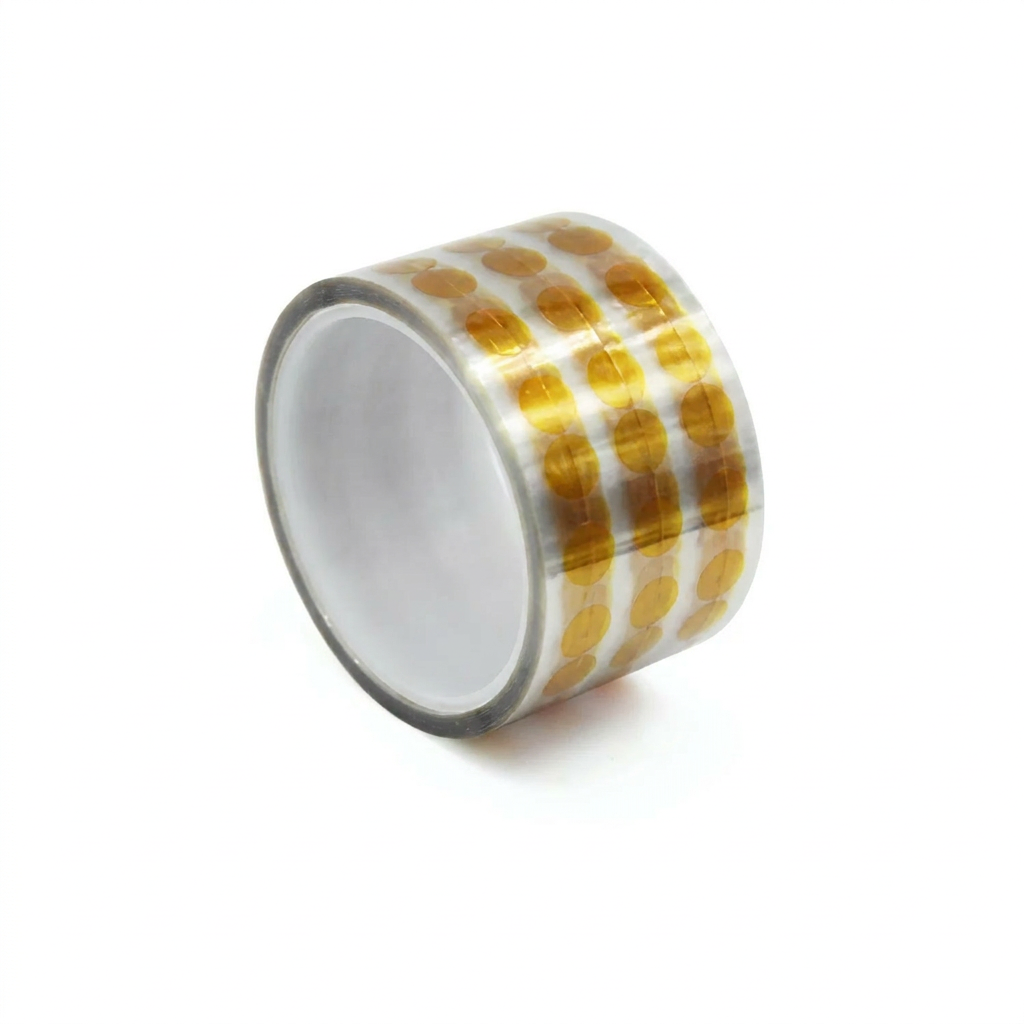

Die Cutting Polyimide Heat Resistant Adhesive Tape
Overview
FUNSMT die-cut polyimide tape is pre-cut into dots, squares, and custom shapes from premium PI film rated to 300°C. The high-performance silicone adhesive bonds strongly yet removes cleanly without residue, with excellent dielectric strength for wave soldering masking and high-voltage insulation.
Details
Features vs. Benefits
Advantages
- Heat & Chemical Resistance: Engineered to withstand extreme heat, acids, alkalis, and solvents without curling or degrading.
- Production Efficiency: Die-cut patches allow operators to apply protection instantly to Goldfingers or test points, eliminating manual cutting.
- Residue-Free Performance: Specifically formulated for SMT/PCB processes; leaves a pristine surface after high-temperature curing.
- Versatile Insulation: Ideal for lithium battery wrapping, motor insulation, and masking during powder coating or plating.
Technical Specifications:
- Base Material: Polyimide (PI) Film
- Adhesive Type: Silicone-based
- Color: Amber (Translucent Brown)
- Thickness: 0.05mm - 0.2mm (Customizable)
- Temperature Range: -40°C to 300°C (Short-term peak)

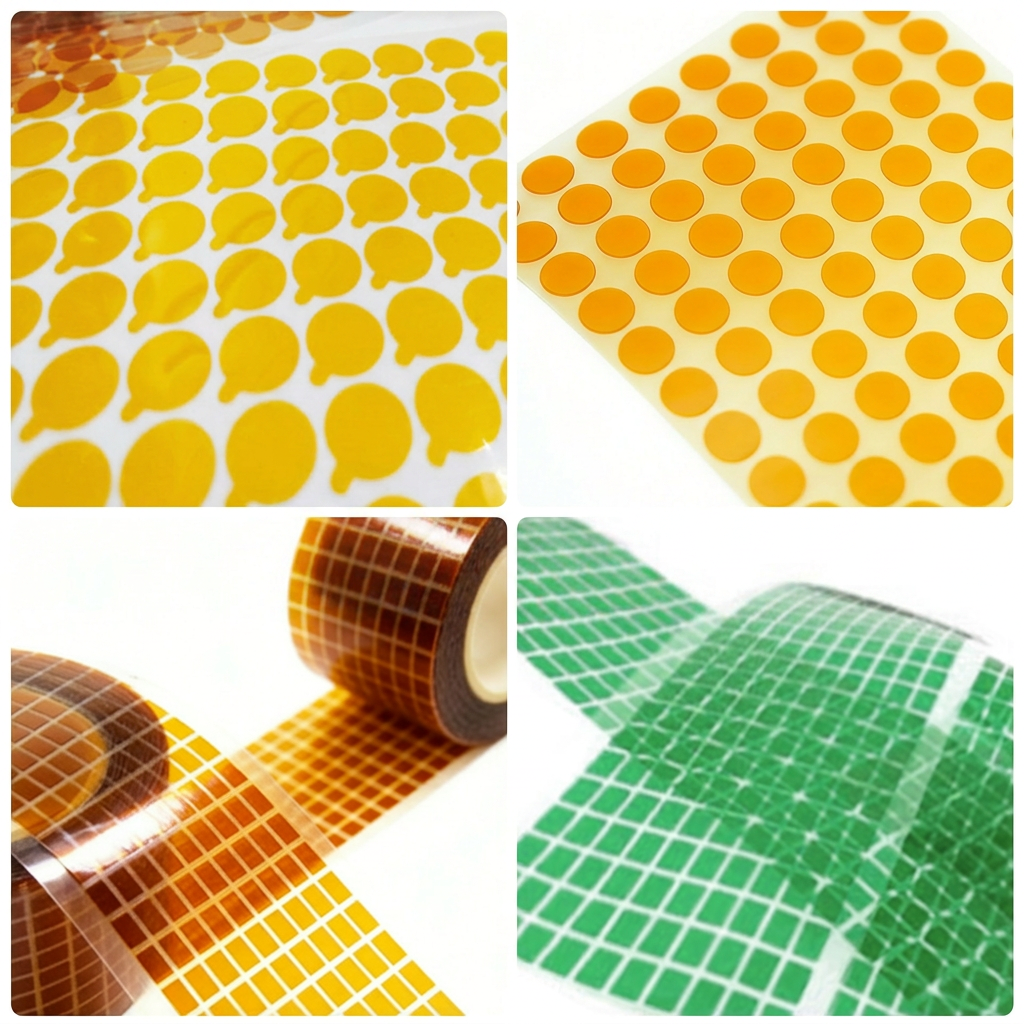

- Shapes: Rounds (Dots), Squares, Rectangles
What’s in the Box:
- 1 x Sheet/Roll of Die-Cut Polyimide Tape Patches (Specific quantity per sheet varies by size).
FAQ
-
Q: Can these patches handle wave soldering temperatures?
- A: Yes, these PI patches are designed to withstand temperatures up to 260°C–300°C, making them ideal for wave soldering and reflow processes.
-
Q: Will they leave a mark on the gold contacts (Goldfingers)?
- A: No, our high-grade silicone adhesive is designed to peel off cleanly even after high-heat exposure, leaving zero residue.
-
Q: Can you provide custom sizes or shapes for specific PCB layouts?
- A: Absolutely. We support full OEM/ODM die-cutting services for any shape or dimension required for your specific project.
Frequently Asked Questions
What pre-cut shapes are available?
Standard dots and squares in common sizes; fully custom shapes and dimensions are available with die tooling.
What is the temperature rating?
Premium PI carrier rated to 300°C — suitable for wave soldering and other extreme thermal processes.
Does the silicone adhesive leave residue?
No — it is formulated for clean removal after high-temp exposure, protecting sensitive contacts and gold fingers.
Can you make custom die-cut dimensions?
Yes. Share your drawing or dimensions and we will quote die tooling and production lead time.
